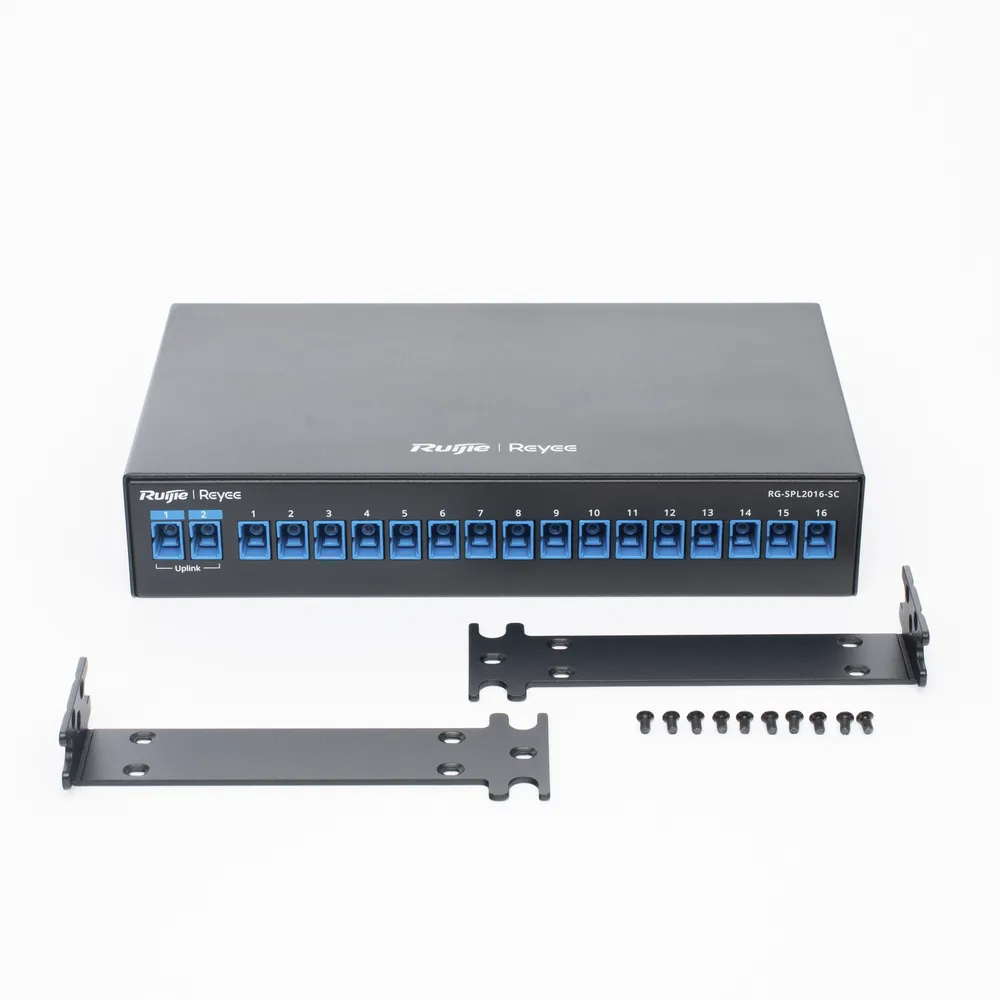

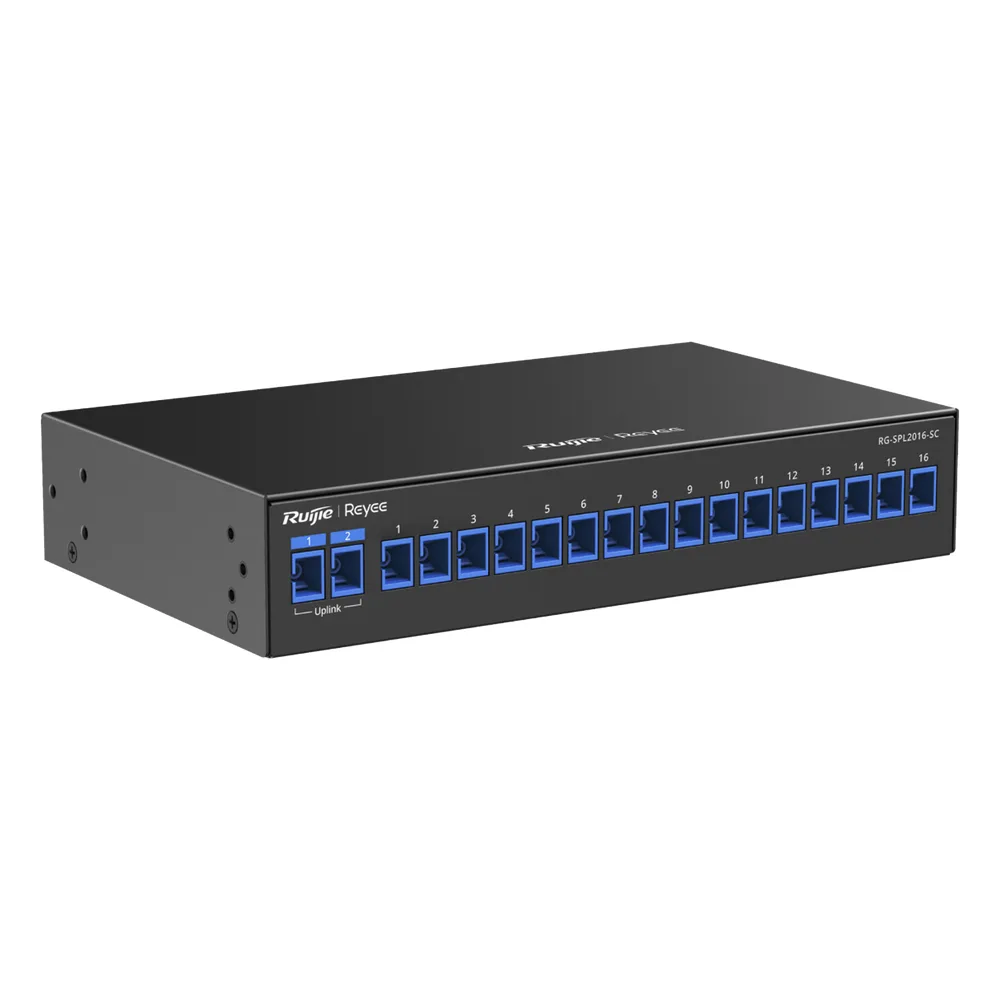

e-Lighten Splitter Pasivo 2/16, Puertos PON SC/UPC, Frecuencias soportadas de 1260nm a 1650nm con hasta 500 mW de Potencia de Entrada

Key Specification

General

• Model: RG-SPL2016-SC
• Warranty: 3 years
• Weight: 0.88kg (2.16 lbs.)

Technical Specifications

• Operating Wavelength: 1260 nm to 1650nm
• Operating Temperature: –40°C to +85°C (–40°F to +185°F)
• Maximum Input Power: 500 mW

Performance

• Insertion Loss: ≤ 17.7 dB
• Port Insertion Loss Uniformity: ≤ 1.5 dB
• Return Loss: ≥ 50 dB

Additional Specs

• Wavelength-Dependent Loss: 0.4 (1310 + 40), 0.4 (1550 + 40)
• Temperature-Dependent Loss: ≤ 0.3 dB
• Polarization-Dependent Loss: ≤ 0.3 dB

Physical Dimensions

• Dimensions (W x D x H): 220 mm x 130 mm x 42 mm (8.66 in. x 5.12 in. x 1.65 in.)
